Line 01 / Low-Voltage Batteries
BL10240 / BL15360

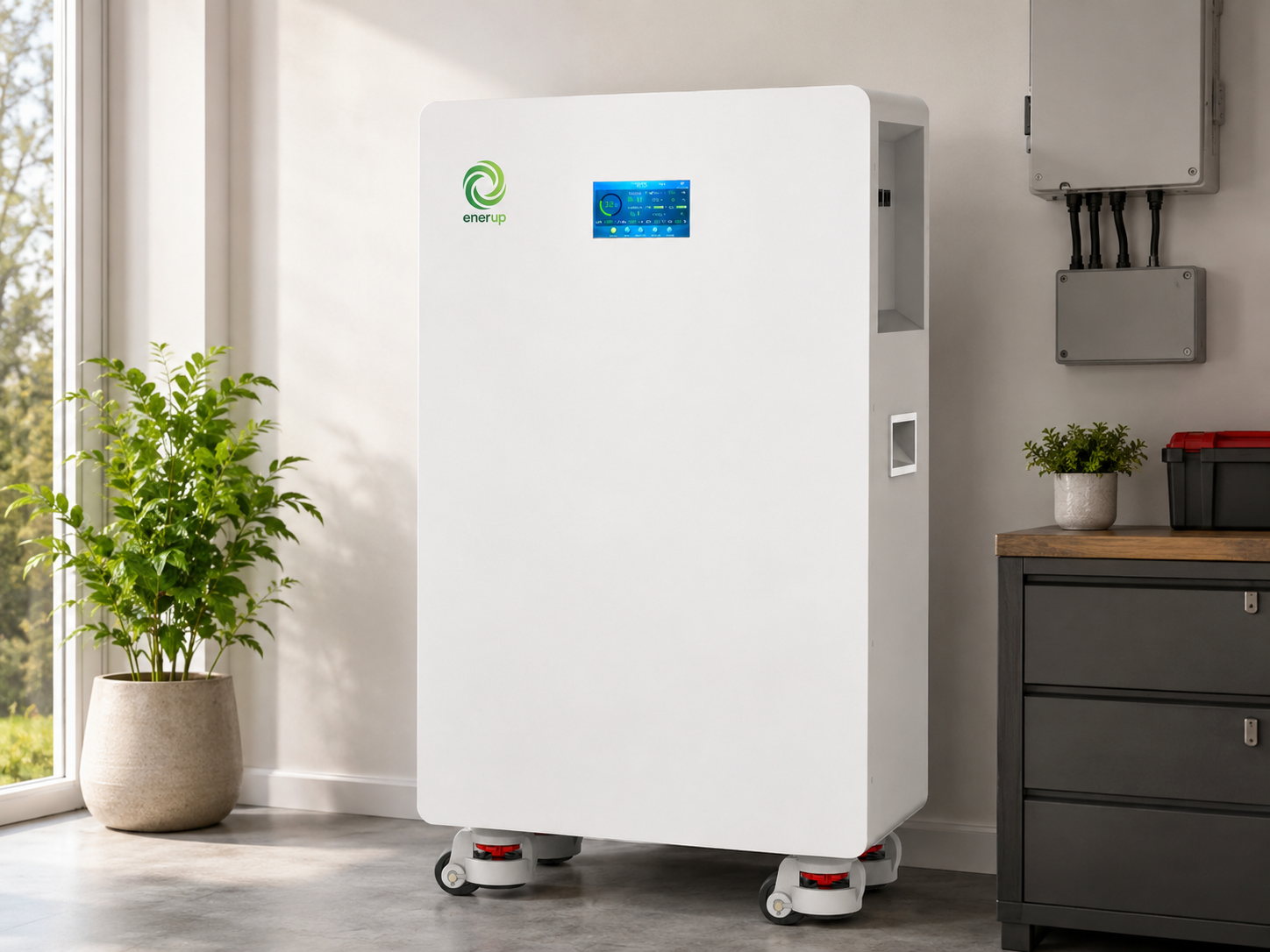

Floor-Standing LiFePO4 Battery
A floor-standing LiFePO4 battery family for residential and light-commercial storage. Select BL10240 or BL15360 using the model-specific current limits and configuration options below.
Capacity
10.24 / 15.36 kWh
Voltage
51.2V
Continuous discharge
200 A
Trade inquiry: include country, company role and capacity range
Buyer decision data
Product decision summary.
A quick summary for distributors, installers and project buyers before downloading the full PDF datasheet or requesting pricing.
Product category
Low-voltage LiFePO4 battery
Best for
Residential battery distributors, solar installers and off-grid backup projects
Application fit
Residential backup / Solar self-consumption / Small shops / Off-grid homes
Datasheet package
BL10240 / BL15360 Datasheet
Before ordering
Confirm the model and ordered options.
Use these checks before specifying the battery or requesting a quotation.
BL10240 allows up to 100 A continuous charging; BL15360 allows up to 200 A. Match the selected model's limit to the charging source.
CAN, RS485, Wi-Fi and LCD are optional. Confirm the exact ordered configuration and required cables.
A CAN or RS485 port alone does not establish compatibility. Verify the exact battery and inverter models, protocol and firmware.
CE / IEC and UN38.3 / MSDS are datasheet labels, not verified certificate evidence. Request the applicable compliance and transport documents for the selected model and destination, and verify their model coverage, document numbers and revisions.
Technical snapshot
Key specifications.
Full parameters remain in the PDF datasheet. This page keeps the website view scannable.
Scroll the table to compare both models on a small screen.
| Parameter | BL10240 | BL15360 |
|---|---|---|
| Battery type | LiFePO4 | LiFePO4 |
| Nominal voltage | 51.2 VDC | 51.2 VDC |
| Rated capacity | 200 Ah | 300 Ah |
| Rated energy | 10.24 kWh | 15.36 kWh |
| Max. continuous charge | 100 A | 200 A |
| Max. continuous discharge | 200 A | 200 A |
| Max. pulse discharge | 300 A for 1 second | 300 A for 1 second |
| Product size (L × W × D) | 720 × 450 × 250 mm | 800 × 450 × 250 mm |
| Net weight | 90 kg | 118 kg |
| Ingress protection | IP20 | IP20 |
| Communication ports | CAN / RS485 / Wi-Fi (optional) | CAN / RS485 / Wi-Fi (optional) |
| Display | LCD (optional) | LCD (optional) |
Technical values on this page are taken from the BL10240 / BL15360 product datasheet, pages 1–2. The document shows no publication date or revision; request the current model datasheet and manual before ordering.
Application fit
Where it fits.
Datasheet download
PDF specification sheet.
Download the official PDF for dimensions, electrical parameters, certification notes and detailed model data.
Same product line
