Line 04A / Hybrid Inverters

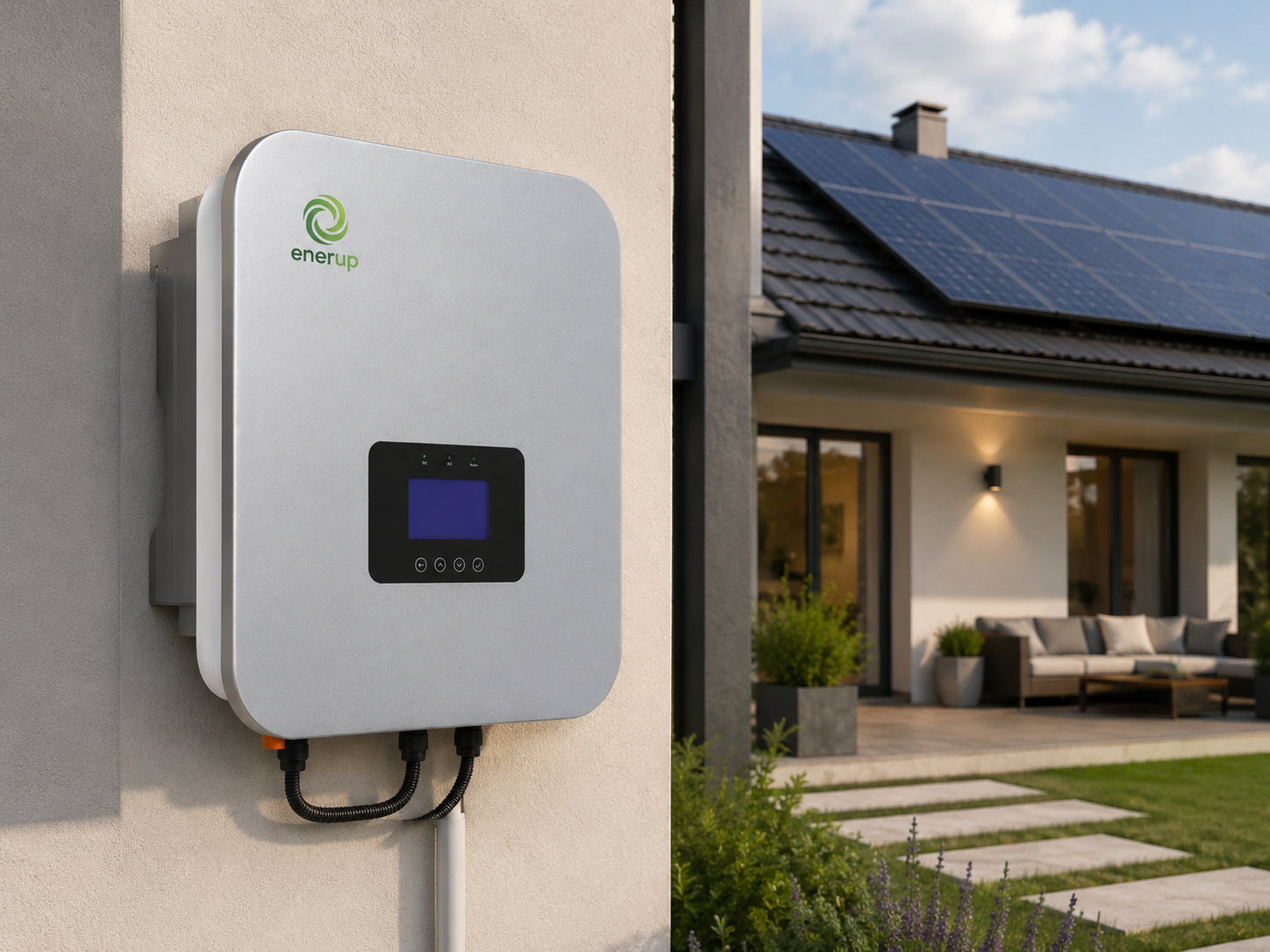

EH3000-EH6000
Hybrid Inverter Series
A compact single-phase hybrid inverter series for residential PV systems that need on-grid output, backup output and 48V battery integration.
Power
3-6 kW
Max PV OCV
550V
Protection
IP66
Trade inquiry: include country, company role and capacity range
Buyer decision data
Product decision summary.
A quick summary for distributors, installers and project buyers before downloading the full PDF datasheet or requesting pricing.
Product category
Solar inverter
Best for
Solar installers, off-grid system integrators and inverter distributors
Application fit
Grid-tied solar storage / Residential PV / Backup AC output / Installer inverter bundles
Datasheet package
EH3000-EH6000 Hybrid Inverter Datasheet
Product highlights
Why this model sells.
These points are written for dealer websites, quotation decks and quick sales conversations.
Dual MPPT architecture with 80-520VDC MPPT range and 550V max PV open-circuit voltage.
Supports lithium and lead-acid batteries through a 40-60V battery voltage range with 48V recommended.
IP66 enclosure with Type III DC/AC surge protection for demanding installation environments.
Backup automatic switch time under 20ms, with LCD/app interface and Wi-Fi/LAN communication.
Technical snapshot
Key specifications.
Full parameters remain in the PDF datasheet. This page keeps the website view scannable.
| Models | EH3000 / EH3680 / EH4000 / EH5000 / EH6000 |
|---|---|
| Rated power | 3 / 3.68 / 4 / 5 / 6kW |
| PV input | 4.5 / 5.5 / 6 / 7.5 / 9kW |
| MPPT range | 80-520VDC |
| Max PV OCV | 550V |
| PV input current | 19A / 19A |
| Battery | 40-60V, 48V recommended |
| Battery type | Lithium and lead-acid |
| Backup transfer | <20ms |
| Protection | IP66; Type III DC / AC surge |
| Monitoring | LCD & app; Wi-Fi / LAN |
Application fit
Where it fits.
Datasheet download
PDF specification sheet.
Download the official PDF for dimensions, electrical parameters, certification notes and detailed model data.
